Honda 115hp - 350hp Outboard Range

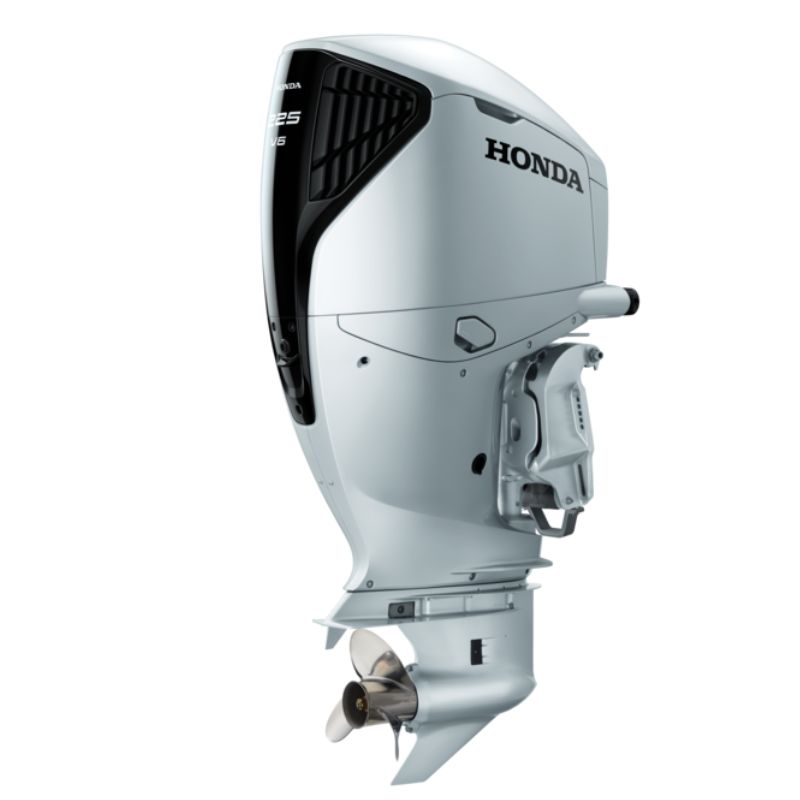

Honda BF225 Mechanical
Inc. GST — Searano Marine pricing.
- Honda Marine Platinum Dealer — WA Dealer of the Year
- Showroom in Malaga — 795 Marshall Rd, Malaga WA 6090
- Service & workshop on-site — Honda certified technicians
Overview
The Honda BF225 outboard motor blends advanced engineering with a high-capacity V6 engine, delivering exceptional power and reliability. With 225 horsepower, this dynamic engine integrates automotive and marine technologies for superior performance, making it ideal for both professional mariners and recreational boaters looking to maximise their time on the water.
Featuring a sleek, updated design, the BF225 incorporates cutting-edge technology from Honda’s flagship BF350, including a Drive-by-Wire system for enhanced control. Its integrated O2 sensor optimizes fuel efficiency, ensuring consistent and dependable operation. Navigate effortlessly with features like Cruise Control for smooth sailing and Automatic Tilt, which adjusts trim angles automatically for easier docking and mooring.
The BF225 boasts a contemporary, streamlined aesthetic, paired with an advanced Drive-by-Wire (DBW) system that incorporates innovative features from Honda’s top-tier BF350 model.
Automatic Tilt & Cruise Control
For DBW-equipped models, the Automatic Tilt feature allows you to preset a trim angle, simplifying docking and mooring by eliminating manual adjustments.
Auto Trim Functionality
On DBW models, the Auto Trim system dynamically adjusts the trim angle based on your boat’s speed, offering customizable settings for seamless operation across various conditions.
O2 Sensor Technology
Equipped with Honda’s O2 sensor, the BF225 optimizes fuel consumption, delivering smoother operation and enhanced reliability for your time on the water.
Honda BF225 Outboard Motor Specifications (2025 Model)
The updated Honda BF225 outboard motor delivers superior performance with a 3583cc V6 engine, cutting-edge technologies like BLAST and VTEC, and enhanced fuel efficiency via Lean Burn Control. Explore the detailed specifications below for this reliable choice for recreational and commercial boating.
Specifications
| Feature | Value |
|---|---|
| Engine Type | 4-Stroke SOHC 60° V6 |
| Displacement | 3583cc |
| Bore & Stroke | 89mm x 96mm |
| Cylinders | 6 |
| Valves | 24 |
| Full Throttle RPM Range | 5000-6000rpm |
| Rated Power | 225HP @ 5500rpm |
| Cooling System | Water Cooled |
| Fuel Delivery | Programmed Fuel Injection (PGM-FI) |
| Ignition System | Microcomputer Programmed |
| Starting System | Electric |
| Exhaust | Through Prop |
| Alternator | 90A (60A Charging), AMP+ |
Technology
| Feature | Status |
|---|---|
| BLAST | Standard |
| Lean Burn Control | Standard |
| VTEC | Standard |
| Troll Control | N/A |
| Cruise Control | N/A |
Safety Features
| Feature | Status |
|---|---|
| Emergency Stop Switch | Standard |
| Oil Pressure Alert | Standard |
| Temperature Alert | Standard |
| Rev-Limiter | Standard |
| Speedometer Pickup | Standard |
Drive
| Feature | Value |
|---|---|
| Gear Ratio | 2.0:1 |
| Gear Shift | F-N-R |
| Propeller | Optional |
Trim & Tilt
| Feature | Status |
|---|---|
| Power Trim & Tilt | Standard |
| Automatic Tilt | N/A |
| Tilt Limit Setting | Standard |
| Trim Support | N/A |
| Trim Range | -4° to +16° |
| Tilt Range | 72° |
Dimensions
| Feature | Value |
|---|---|
| Overall Length | 920mm |
| Overall Width | 666mm |
| Overall Height (X-Type) | 1800mm |
| Overall Height (U-Type) | 1925mm |
| Transom Height (X-Type) | 635mm |
| Transom Height (U-Type) | 762mm |
| Dry Weight (X-Type) | 284kg |
| Dry Weight (U-Type) | 289kg |
Warranty
| Feature | Value |
|---|---|
| Domestic Warranty | 7 Years* |
| Commercial Warranty | 3 Years* |
Full Specifications
